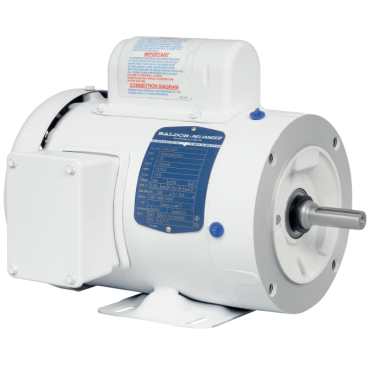

- 1 HP, 1800 RPM, 60 Hertz, 115/208-230 Volt, Single Phase, TEFC - Totally Enclosed Fan Cooled, C-Face (With Base), 56C Frame, 1.15 SF
features
- Moisture sealant on select areas
- Neoprene gaskets
- Double-sealed bearings
- Forsheda® v-ring slinger
- Stainless steel shaft
- White epoxy, corrosion resistant finish
- Class F insulation
- Food processing
- Any application where motor receives washdown on a regular basis
| Full Load Amps | 6.4 |
| Design | L |
| Drive End Bearing | 6205 |
| Voltage Rating | 115/230 |
| Full Load Efficiency | 67 % |
| Useable at 208V | Yes |
| Frame | 56C |
| Product Line | RG |
| Brake Feature | No |
| Hz | 60 Hz |
| Motor Application | Washdown Duty |
| Efficiency Group | Standard Efficient |
| C Dimension | 13 1/4 in |
| RefPicture | CWDL |
| Frame Size | 56C |
| Service Factor | 1.15 |
| Type | 3524L |
| Motor Shaft Length | 1 7/8 in |
| Motor Shaft Size | 5/8 in |
| Voltage | 115/230 |
| Frame Material | Steel |
| Mounting | C-Face - With Base |
| Open End Bearing | 6203 |
| Washdown Duty | Yes |
| Phase | Single Phase |
| RPM | 1,800 rpm |
| Full Load Pf | 73 |
| Mult. Sym. | K |
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| Full Load rpm | 1725 rpm |
| Poles | 4 |
| Mounting Style | F-1 |
| Enclosure | TEFC |
| Rotation | R |
| VoltCode | B1 |
| Weight | 41.0 LB |
| EAN or UPC | 781568108383 |
