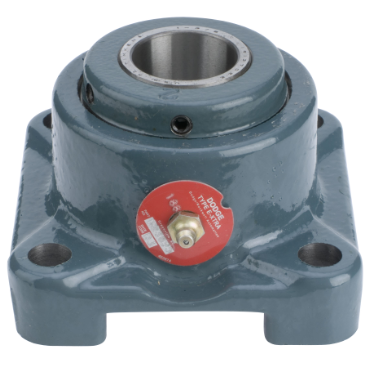

- Heavy-Duty 4-Bolt Flange
- 1 3/8" Shaft Size
- Springlok Collar
- 3 1/2" Bolt Hole Spacing
- Non-Expansion
description
- Dodge Type E, industry-trusted and proven since 1943, is manufactured in Marion, NC. The US-manufactured, high-capacity mounted tapered roller bearing offers longer bearing life at a reliable and lower TCO.
applications
- Aggregate
- Conveyors
- Load out
- Cement
features
- Dodge manufactured in Marion, NC, Providing industry-leading availability
- Case-hardened rollers and races
- XTS nitrile rubber triple lip seal
- Provides added protection against contamination
- Factory lubed, sealed and adjusted
- Dual Spring-lok collar with 65° set screw mounting
- Easy installation and maintenance
- Dodge Industrial Sensor ready
| Bolt Hole Size | 1/2 in |
| Bolt Size | 3/4 in |
| Locking Device | Springlok™ Collar |
| Flange Thickness | 1 1/16 in |
| Duty | Heavy-Duty |
| Mounted Unit Duty | Heavy-Duty |
| Length Through Bore | 3.0625 in |
| Lubrication | Relubricatable |
| Housing Height | 4 5/8 in |
| Bearing Type | Tapered Roller Bearing |
| Shaft Dia. | 1.375 in |
| Housing Material | Cast Iron |
| End Type | Open End |
| Seal Type | Contact Seals |
| Bolt Hole Spacing | 3 1/2 in |
| Inch/Metric | Inch |
| Style | 4-Bolt Flange |
| Flange Type | 4-Bolt Flange |
| Housing Construction | 1 Piece |
| Bearing Design | Non-Expansion |
| Housing Length | 4 5/8 in |
| Overall Width | 3 1/16 in |
| Weight | 6.72 LB |
| EAN or UPC | 782475699780 |
