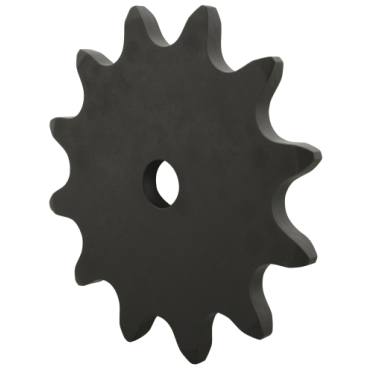

Reborable Double Pitch Sprocket

2042A30

Reborable Double Pitch Sprocket

Item #100804507

2042 Chain Number
30 Teeth
Without Hardened Teeth
A Sprocket Style
1 Strand

0.284 in Length Through Bore

0.71875 in Minimum Bore

2.375 in Maximum Bore

+ Show More

Reborable Double Pitch Sprocket

Auto Replenish

each One-time purchase

Product Details

2042 Chain Number
30 Teeth
Without Hardened Teeth
A Sprocket Style
1 Strand

description

Maximum bores shown will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to keyseat.

features

To be used with double pitch chains
Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality

Specifications

Outside Dia. [Min]	10.11 in
Sprocket Style	A
Pitch Diameter [Min]	9.57 in
Material	Steel
Outside Dia.	10.11 in
Hub Dia.	2 3/8 in
Chain Strands	1
Pitch Diameter	9.57 in
Bore Style	Reborable
Martin No.	C2042A30
Chain No.	2042
Bore Range [Max]	2.375 in
Chain Pitch	1 in
Bore Type	Reborable
No. of Strands Across	1
Hub Projection	N/A
Length Through Bore	0.284 in
Effective No. of Teeth	15
Width Across Teeth	0.284 in
Bore Range [Min]	0.71875 in
Inch/Metric	Inch
No. of Teeth	30
Hub Length Thru	N/A
Family Name	No. C2042 - 1 in Pitch - Single - A
Hardened Teeth	Without Hardened Teeth
Caliper Diameter	8.94 in
Weight	5.08 LB
EAN or UPC	697950044637
