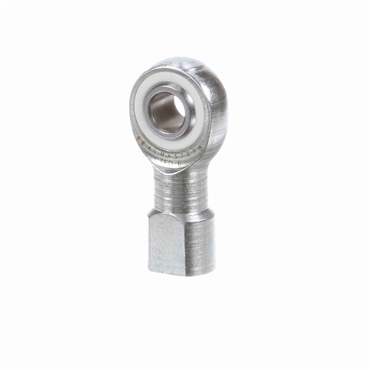

CTFD6

CTFD Series Three-Piece Commercial Self-Lubricating Female Rod End

Item #101182766

Auto Replenish

each One-time purchase

Alternate Products

Alinabal PF-6-G

P-Series Female Rod End

Item #100740788

each

Compare

Heim Bearings CFHD6

UNIBAL Commercial Series - Self Lubricating

Item #101992102

each

Compare

Boston Gear CFHD-6

Right Hand Female Rod End, Commercial Grade

Item #101778032

each

Compare

Spherco CTFD6

COMMERCIAL ROD END FEMALE THERMO

Item #105120990

each

Compare

Product Details

Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head

Specifications

Grade	Commercial
Right / Left Hand	Right Hand
Across Wrench Flats	9/16 in
Lubrication	Self-Lubricating
Thread Type	UNF
Bearing Type	Plain Bearing
Ball Material	Tin Nickel Plated C1215 Carbon Steel, Case Hardened
Insert Material	Delrin® Acetal Resin
Liner	N/A
Base Dia.	11/16 in
Bore Size	0.375 in
Static Load Rating [Max]	2150 lbf
Length Through Bore	0.5 in
Housing Material	C1215 Carbon Steel, Protective Coated for Corrosion Resistance
Ball Flat Dia.	0.517 in
Lube Fitting	w/o Lube Fitting
Misalignment Range	±6°
Threads per Inch	24
Head Diameter	1 in
Ball Dia.	0.718 in
Housing Width	0.406 in
Thread Size	3/8
Thread Pitch	N/A
Weight	0.13 LB
EAN or UPC	662288725978
