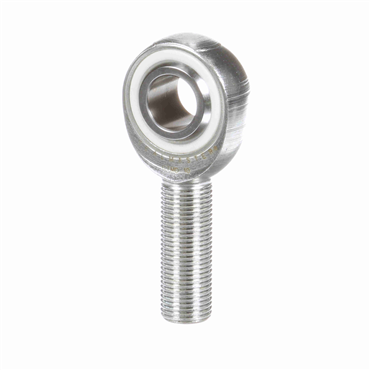

CTMD Series Three-Piece Commercial Self-Lubricating Male Rod End

CTMD10

CTMD Series Three-Piece Commercial Self-Lubricating Male Rod End
Item #101182801
  • Right Hand Commercial Male Rod End
  • Self-Lubricating
  • 5/8" Bore
  • 5/8-18 Thread
CTMD Series Three-Piece Commercial Self-Lubricating Male Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Right Hand Commercial Male Rod End
  • Self-Lubricating
  • 5/8" Bore
  • 5/8-18 Thread

description

  • Three-piece construction offers flexibility for alternative race materials designed to solve specific application problems.

applications

  • Agricultural equipment
  • Bakeries
  • Bottling equipment
  • Construction machinery
  • Dairy industry
  • Exercise machines
  • Food processing
  • Industrial fans
  • Farm and garden machinery

features

  • Static load capacity 800 to 6,600 lb
  • Maximum temperature 150 °F
  • Withstands vibration
  • Maintenance-free

caution

  • Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head
Thread Size 5/8
Right / Left Hand Right Hand
Housing Material Carbon Steel, Protective Coated for Corrosion Resistance
Threads per Inch 18
Liner N/A
Misalignment Range ±8°
Housing Width 0.562 in
Grade Commercial
Static Load Rating [Max] 4620 lbf
Lube Fitting w/o Lube Fitting
Ball Material Alloy Steel, Heat Treated, Chrome Plated
Head Diameter 1 1/2 in
Thread Type UNF
Thread Pitch N/A
Bore Size 0.625 in
Length Through Bore 0.75 in
Insert Material Delrin® Acetal Resin
Ball Flat Dia. 0.839 in
Lubrication Self-Lubricating
Ball Dia. 1 1/8 in
Bearing Type Plain Bearing
Weight 0.36 LB
EAN or UPC 662288725848
