description
- Pilot dimension fits in customer's machine.
features

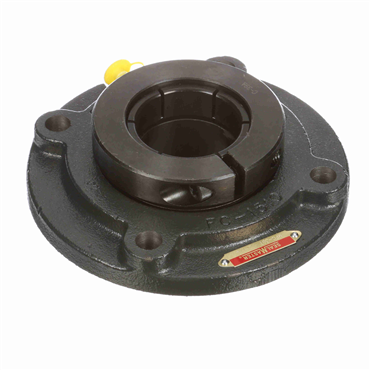

- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
| Outer Ring Land Profile | Standard |
| Bore Shape | Straight |
| Housing Type | Flange, Piloted |
| Relubricatable | Yes |
| Collar OD (in) | 4.063 |
| Housing Construction | One Piece |
| Seal Type | Felt Labyrinth Seal |
| Duty Series | Medium |
| Bolt Center-to-Center Length (in) | 6 |
| Foot Height (in) | 0.5 |
| Misalignment Type | Static Only |
| Inner Race Heat Treat Method | Zone-Hardened |
| Inner Race Length (in) | 2.625 |
| Centerline to Front Face (in) | 1.625 |
| Bolt Size (in) | 0.5 |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Pilot Configuration | No Pilot |
| Expansion | No |
| Insert No. | 2-24T |
| Bearing Insert Coating | Black Oxide Coated |
| Lubrication | Lithium Complex NLGI 2 Grease |
| Maximum Operating Temperature | 220 |
| End Cap | No |
| Retainer Type | Land Riding Retainer |
| Housing OD (in) | 7.125 |
| Pilot Diameter (in) | 5 |
| Bolt Center Diameter (in) | 6 |
| Bore Size - Inch | 2.25 |
| Measure Units | Inch |
| Replaceable Insert | Yes |
| Housing Material | Cast Iron |
| Weight | 10.65 LB |
| EAN or UPC | 662461031803 |
