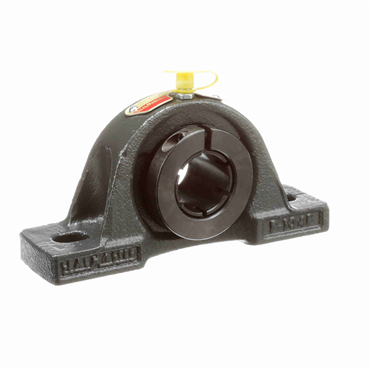

705877 / Gold Line Ball Bearing

NPL-20TC

705877 / Gold Line Ball Bearing
Item #101179873
  • Contact Seal Type
705877 / Gold Line Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Contact Seal Type

description

  • Generally used where low shaft-to-center dimension exist

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Single lip contact seal
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Inner Race Length (in) 1.75
Overall Length (in) 6.563
Foot Height (in) 0.563
Outer Ring Land Profile Standard
Bolt Center-to-Center Length (in) 4.6875 to 5.3125
Bolt Size (in) 0.5000
Radial Static Load Capacity (lb) 3493
End Cap No
Retainer Type Land Riding Retainer
Bore Size - Inch 1.25
Insert No. 2-14TC
Radial Dynamic Load Capacity (lb) 5782
Seal Type Contact Seal
Centerline to Front Face (in) 1.063
Relubricatable Yes
Lubrication Lithium Complex NLGI 2 Grease
Housing Material Cast Iron
Collar OD (in) 2.438
Bearing Insert Coating Black Oxide Coated
Misalignment Type Static Only
Insert Material 52100 Bearing Steel, Black Oxided
Base Width (in) 1.875
Overall Height (in) 3.688
Measure Units Inch
Expansion No
Maximum Operating Temperature 220
Bore Shape Straight
Housing Base Solid
Platform Gold Line Ball Bearing
Bolt Center Min (in) 4.688
Replaceable Insert Yes
Brand. Sealmaster
Housing Construction One Piece
Duty Series Standard
Bolt Center Max (in) 5.313
Base to Center Height (in) 1.813
Weight 4.6 LB
EAN or UPC 662461033579
