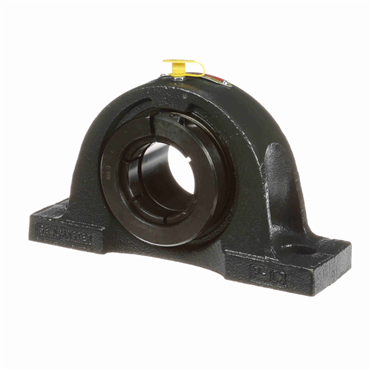

705503 / Gold Line Ball Bearing

NPL-27T

705503 / Gold Line Ball Bearing
Item #101179894
  • Felt Labyrinth Seal Type
705503 / Gold Line Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Felt Labyrinth Seal Type

description

  • Generally used where low shaft-to-center dimension exist

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
End Cap No
Misalignment Type Static Only
Housing Material Cast Iron
Bolt Center Max (in) 6.063
Housing Construction One Piece
Collar OD (in) 2.938
Insert Material 52100 Bearing Steel, Black Oxided
Bolt Center Min (in) 5.438
Housing Base Solid
Overall Height (in) 4.188
Centerline to Front Face (in) 1.25
Outer Ring Land Profile Standard
Maximum Operating Temperature 220
Lubrication Lithium Complex NLGI 2 Grease
Relubricatable Yes
Inner Race Length (in) 2
Bore Shape Straight
Expansion No
Bore Size - Inch 1.688
Replaceable Insert Yes
Bolt Size (in) 0.5
Base Width (in) 2.125
Retainer Type Land Riding Retainer
Base to Center Height (in) 2.063
Platform Gold Line Ball Bearing
Seal Type Felt Labyrinth Seal
Measure Units Inch
Bearing Insert Coating Black Oxide Coated
Overall Length (in) 7.5
Duty Series Standard
Insert No. 2-111T
Foot Height (in) 0.625
Weight 6.75 LB
EAN or UPC 662461030585
