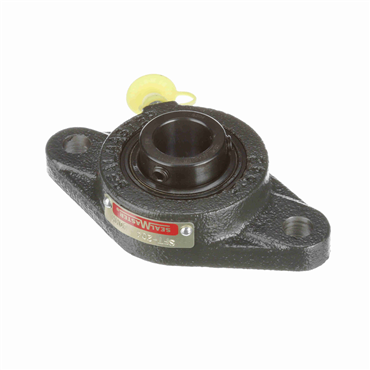

Sealmaster | SFT-204 | 710018 / Gold Line Ball Bearing

SFT-204

710018 / Gold Line Ball Bearing

Item #101180666

Auto Replenish

each One-time purchase

Product Details

Designed for flush mounting with machined bases for light loads and two bolt holes.

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Relubricatable	Yes
Insert Material	52100 Bearing Steel, Black Oxided
Retainer Type	Land Riding Retainer
Bolt Center-to-Center Length (mm)	89.7
Outer Ring Land Profile	Standard
Overall Length (mm)	111.9
Misalignment Type	Static Only
Insert No.	5204
Length Through Bore (in)	1.219
Inner Race Heat Treat Method	Zone-Hardened
Replaceable Insert	Yes
Overall Width (in)	2.375
Platform	Gold Line Ball Bearing
Overall Length (in)	4.406
Bore Size - Metric	20
Bore Shape	Straight
Bearing Insert Coating	Black Oxide Coated
Duty Series	Standard
Expansion	No
Overall Height (in)	1.281
Foot Height (mm)	11.1
Measure Units	Metric
Housing Material	Cast Iron
Bolt Size (in)	0.3750
Housing Base	Solid
End Cap	No
Overall Height to Inner Ring (in)	1.28
Overall Height to Inner Ring (mm)	32.5
Foot Height (in)	0.437
Seal Type	Felt Labyrinth Seal
Internal Clearance	Standard
Maximum Operating Temperature	220
Radial Dynamic Load Capacity (lb)	2611
Pilot Configuration	No Pilot
Radial Static Load Capacity (lb)	1444
Inner Race Length (in)	1.219
Lubrication	Lithium Complex NLGI 2 Grease
Housing Width (in)	2.375
Housing Construction	One Piece
Weight	1.05 LB
EAN or UPC	662461052464

SFT-204
