UCFL206-30MM

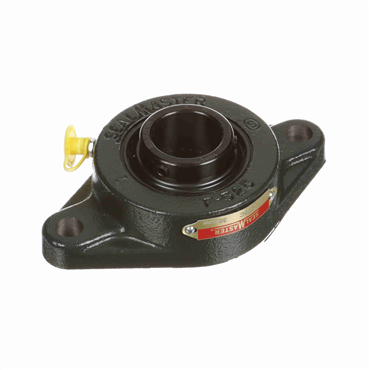

UCFL200 Series Normal-Duty Cast Iron 2-Bolt Flange Unit
Item #103163917
- Contact Seal Type
description
- Designed for flush mounting with machined bases for light loads and two bolt holes.
features
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
| Duty Series | Standard |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| End Cap | No |
| Overall Height to Inner Ring (in) | 1.563 |
| Pilot Configuration | No Pilot |
| Housing Base | Solid |
| Overall Height to Inner Ring (mm) | 39.7 |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Replaceable Insert | Yes |
| Platform | Gold Line Ball Bearing |
| Seal Type | Contact Seal |
| Internal Clearance | Standard |
| Maximum Operating Temperature | 220 |
| Insert No. | 5206C |
| Foot Height (in) | 0.531 |
| Inner Race Heat Treat Method | Zone-Hardened |
| Bore Shape | Straight |
| Foot Height (mm) | 13.5 |
| Lubrication | Lithium Complex NLGI 2 Grease |
| Housing Material | Cast Iron |
| Measure Units | Metric |
| Bolt Size (in) | 0.4375 |
| Outer Ring Land Profile | Standard |
| Bore Size - Metric | 30 |
| Misalignment Type | Static Only |
| Expansion | No |
| Housing Construction | One Piece |
| Centerline to Front Face (mm) | 22.2 |
| Bearing Insert Coating | Black Oxide Coated |
| Overall Length (mm) | 141.3 |
| Bolt Center-to-Center Length (mm) | 116.7 |
| Centerline to Front Face (in) | 0.9 |
| Weight | 2.2 LB |
| EAN or UPC | 662461054949 |
