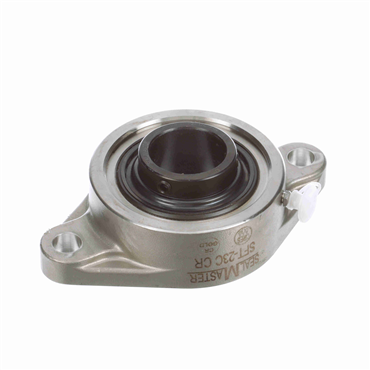

723563 / Setscrew

SFT-23C CR

723563 / Setscrew
Item #101180701
  • Contact Seal Type
723563 / Setscrew
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Contact Seal Type

description

  • Designed for flush mounting with machined bases for light loads and two bolt holes.

applications

  • Food processing
  • Beverage industry
  • Meat, poultry, and seafood processing
  • Dairy industry
  • Drug and pharmaceutical plants
  • Chemical processing
  • Pulp and paper mills
  • Municipal treatment equipment
  • Marine and naval

features

  • Single lip contact seal with black oxide bearing races
  • High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

options

  • Corrosion Resistant
Overall Length (in) 6.125
Outer Ring Land Profile Standard
End Cap No
Internal Clearance Standard
Bearing Insert Coating Black Oxide Coated
Bolt Size (in) 0.5
Inner Ring OD (in) 1.859
Bore Shape Straight
Backside Shield/Seal Optional backside shield available order separate
Misalignment Type Static Only
Insert Material 52100 Bearing Steel, Black Oxided
Bolt Center-to-Center Length (in) 5.1250
Measure Units Inch
Packaged Height 2.00 in
Insert No. 2-17C FG2
Bore Size - Inch 1.438
Relubricatable Yes
Housing Base Solid
Packaged Width 5.00 in
Packaged Length 5.00 in
Seal Type Contact Seal
Duty Series Standard
Overall Height to Inner Ring (in) 1.75
Housing Material Stainless Steel
Retainer Type Land Riding Retainer
Inner Race Heat Treat Method Zone-Hardened
Platform CR Series
Replaceable Insert Yes
Pilot Configuration No Pilot
Housing Construction One Piece
Lubrication Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Foot Height (in) 0.563
Expansion No
Maximum Operating Temperature 220
Centerline to Front Face (in) 1
Weight 3.0 LB
EAN or UPC 662461235225
