703600 / Air Handling

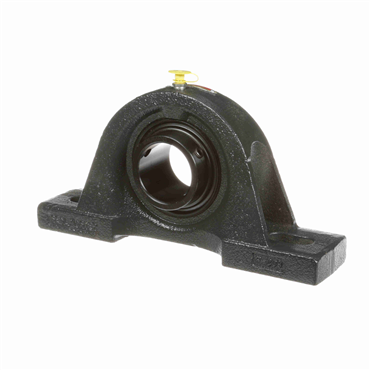

SP-31C

703600 / Air Handling
Item #101180791
  • Contact Seal Type
703600 / Air Handling
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Contact Seal Type

description

  • Interchanges shaft to centerline and bolt hole dimensions with other competitive designs.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Single lip contact seal
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Brand. Sealmaster
Replaceable Insert Yes
Bore Shape Straight
Overall Length (in) 10.5
Inner Race Length (in) 2.031
Seal Type Contact Seal
Base Width (in) 2.5
Insert No. 2-115C
Measure Units Inch
Misalignment Type Static Only
Bolt Center Min (in) 6.75
Foot Height (in) 0.875
End Cap No
Inner Ring OD (in) 2.469
Overall Height (in) 5.313
Insert Material 52100 Bearing Steel, Black Oxided
Platform Air Handling
Expansion No
Bore Size - Inch 1.938
Bolt Size (in) 0.625
Retainer Type Land Riding Retainer
Bolt Center Max (in) 8.5
Lubrication Lithium Complex NLGI 2 Grease
Duty Series Standard
Maximum Operating Temperature 220
Relubricatable Yes
Bearing Insert Coating Black Oxide Coated
Housing Material Cast Iron
Outer Ring Land Profile Standard
Centerline to Front Face (in) 1.281
Housing Base Solid
Housing Construction One Piece
Weight 11.2 LB
EAN or UPC 662461023303
