1900-S Extremely Light Series Ball Bearing

1936S

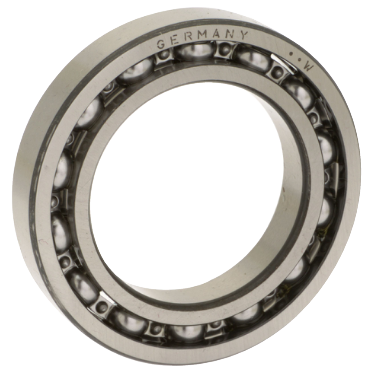

1900-S Extremely Light Series Ball Bearing
Item #104015555
  • 180 mm ID x 250 mm OD x 33 mm Wide
  • Open
  • No Snap Ring
  • Single Row Radial Steel Bearing
1900-S Extremely Light Series Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 180 mm ID x 250 mm OD x 33 mm Wide
  • Open
  • No Snap Ring
  • Single Row Radial Steel Bearing

applications

  • Designed for applications where a lack of space or limitations on weight require a bearing with a thinner section

features

  • Can carry significant radial loads
  • Can carry substantial thrust loads in either direction, even at very high speeds
  • Supplied with a pressed steel cage
  • Single-row radial conrad-type bearings that can accommodate light radial loads, two-directional thrust loads, or a combination of both 104015556
  • 0
  • Available with both a cylindrical bore and tapered bore with a 1:12 taper"
Bore Type Round Bore
Rows of Balls Single
Width 33.000 mm
Capacity Standard Capacity
Static Load Rating [Max] 29700 lbf
Limiting Speed - Sealed 1500 rpm
Enclosure Open
Limiting Speed - Oil 2800 rpm
Inner Ring Width 33 mm
Cage Type Metal
Fillet Radius 2 mm
Inch/Metric Metric Bore
Ball Material Steel
Dynamic Load Rating 26800 lbf
Snap Ring No Snap Ring
Radial Internal Clearance Normal
O.D. Type Straight
Preload Level None
Lubricant Oil Preservative
Limiting Speed - Grease 2200 rpm
Precision Level Standard (ABEC 1)
O.D. 250 mm
Bearing Type Radial
Precision Standard
Seal Material None
I.D. 180 mm
Contact Angle
Radial Internal Clearance Specification Normal Clearance
icNumber 7697598
Seal Type Unsealed
No. in Set Single Bearing
Material Steel
Locking Device No Locking Device
Cage Material Steel
Outer Ring Width 33 mm
Weight 9.9 LB
