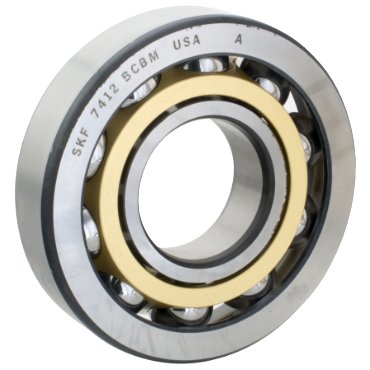

- Single Row Angular Contact Bearing, 85 mm ID x 210 mm OD x 52 mm Wide, Open, Standard Precision (ABEC 1), Brass / Bronze Cage, Normal Clearance (C0), 40° Contact Angle
features
- MRC angular contact bearings with a PJ suffix have one heavy race shoulder on the outer ring, opposing one heavy race shoulder and on recessed race shoulder on the inner ring. Because of this construction, it is possible for this bearing to incorporate a
- 7000-PJ bearings are particularly suitable for positions where the thrust is always present in one direction. It should not be used where the bearing is subjected to radial load only, or combined radial and thrust load where the radial load is predominant
- 7000-PJ bearings are available with either peressed brass or machined brass, ball centered cages. The low shoulder diameters on the nonthrust sides of inner and outer rings, combined with large clearances between the land diameters and the cage, allow fo
- ABEC Grade 3 bore tolerances reduce the range of interference fits between the shaft and bearing bore. These tighter tolerances result in closer control of preload and minimize the risk of thermal runaway.
- 7400-PJ and PJD Series bearings are similar to the 7200-PJ and 7300-PH Series but are heavier sectioned and are used for very heavy thrust loads or combined radial and thrust loads where thrust is predominant.
| O.D. | 8.27 in, 210 mm |
| Precision | Standard |
| Flush Ground | Yes |
| Contact Angle | 40 Degree |
| Fillet Radius | 3 mm |
| icNumber | 7696682 |
| Locking Device | No Locking Device |
| Inch/Metric | Metric |
| Seal Type | Unsealed |
| Capacity | Standard Capacity |
| Series | 7400PJ |
| Outer Ring Width | 2.05 in, 52 mm |
| Static Load Rating | 166 kN |
| Inner Ring Width | 2.05 in, 52 mm |
| Bearing Type | Unmounted, Angular Contact |
| Internal Design | Universal Mounting |
| Static Load Rating [Max] | 41800 lbf |
| O.D. Type | Cylindrical |
| Radial Internal Clearance Specification | Normal Clearance |
| Limiting Speed - Grease | 2900 rpm |
| Radial Internal Clearance | Normal |
| Rows of Balls | Single |
| Enclosure | Open |
| Temperature Range [Max] | 450 °F |
| Ball Material | Steel |
| Origin | Single Row Angular Contact |
| Dynamic Load Rating | 190 kN |
| No. in Set | Single Bearing |
| Bore Type | Cylindrical |
| Lubricant | Oil Preservative |
| Width | 2.05 in, 52 mm |
| I.D. | 3.35 in, 85 mm |
| Limiting Speed - Oil | 3800 rpm |
| Precision Level | Standard (ABEC 1) |
| Material | Bearing Steel |
| Seal Material | None |
| Preload Level | Light |
| Snap Ring | No Snap Ring |
| Cage Material | Brass |
| Cage Type | Metal |
| Weight | 20.735 LB |
| EAN or UPC | 97741018616 |
