- 1" Shaft, 3 5/8" Bolt Hole Spacing, Contact Seals, Eccentric Collar, Regreasable, Non-Expansion
description

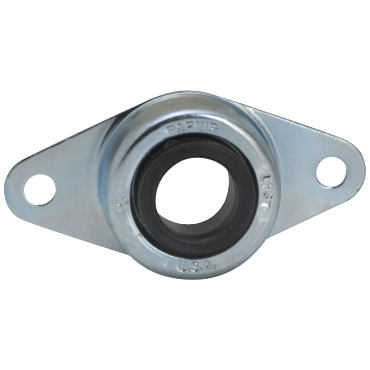

- Fafnir LFST zinc-plated, pressed steel, flush mounted, housed series simplifies bearing flange unit installations. A special conductive rubber interliner reduces noise and vibration and allows for alignment while the pressed steel flange ensures rigid bearing support.Bolt hole spacing permts interchangeability with competitive mountings. The LFST unit offers compactness, economy, corrosion-resistant housing, and balanced design. LFST units feature Fafnir's RAL light series ball bearings. An outstanding concept in bearing design, the RAL provides precision, in an extended inner ring bearing with superior shroud seal protection and self-locking collar. Bearings are supplied prelubricated.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Flange Type | 2-Bolt Flange |
| Housing Length | 4 1/2 in |
| Seal Type | Contact Seals |
| Housing Height | 2 1/4 in |
| Locking Device | Eccentric Locking Collar |
| Inch/Metric | Inch |
| Bolt Circle Dia. | 3 5/8 in |
| Housing Construction | 1 Piece |
| End Type | Open End |
| Lubrication | Relubricatable |
| Mounted Unit Duty | Normal-Duty |
| Bolt Hole Size | 3/8 in |
| Housing Material | Cast Iron |
| Dynamic Load Rating | 300 lbf |
| Flange Thickness | 0.06 in |
| Bearing Type | Ball Bearing |
| Bolt Hole Spacing | 3 5/8 in |
| Style | 2-Bolt Flange |
| Housing Width | 0.9063 in |
| Bearing Design | Non-Expansion |
| Bearing Insert | RAL100NPP |
| Overall Width | 1.2188 in |
| Shaft Dia. | 1 in |
| Duty | Normal-Duty |
| Weight | 0.549 LB |
| EAN or UPC | 87796057272 |
