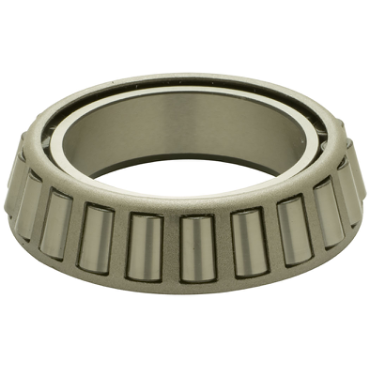

- LM710900 Series Single Cone
- 2.5591" Straight Bore
- 0.9050" Wide
- 0.120" Maximum Shaft Fillet Radius
- Standard Tolerance
description
- The most basic and widely used type of tapered roller bearing. It is comprised of two main separable parts, the inner race assembly cone and the outer race cup. During equipment assembly, single-row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
| Bearing Type | Single Cone |
| Tolerance | Standard |
| Family Name | Tapered Roller Bearing Single Cone |
| Enclosure | Open |
| Bore Type | Round Bore |
| Material | Steel |
| Shaft Fillet Radius [Max] | 0.120 in |
| Series | LM710900 |
| I.D. | 2.5591 in |
| Origin | Cones |
| Cone Width | 0.905 in |
| Cone Type | Single Cone |
| K Factor | 1.287048 |
| Radial Rating | 5838.5 lbf |
| Weight | 1.22 LB |
| EAN or UPC | 53893664835 |
