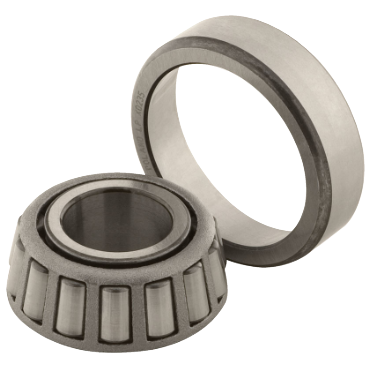

- Tapered Roller Bearing Set
- 1 9/16" ID x 3.1483" OD x 0.7636" Wide
- Class 2 (Standard)
- (U399A/U365L/K518783/K523967)
description
- The most basic and widely used type of tapered roller bearing. It is comprised of two main separable parts, the inner race assembly cone and the outer race cup. During equipment assembly, single-row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
| Outer Ring Width | 0.764 in |
| Collar No. | K518783 |
| Cup Width | 0.601 in |
| Inch/Metric | Inch |
| I.D. | 1 9/16 in |
| O.D. | 3.1483 in |
| Cone No. | U399A |
| Cage Material | Steel |
| Cone Width | 0.87 in |
| Tolerance | Class 2 (Standard) |
| Cup No. | U365L |
| Cone/Cup | Cup/Cone |
| Enclosure | Sealed |
| Weight | 1.79 LB |
| EAN or UPC | 53893730127 |
