- Tapered Roller Bearing Set
- 1 1/4" ID x 2.328" OD x 5/8" Wide
- Class 2 (Standard)
- (LM67048/LM67010)
description

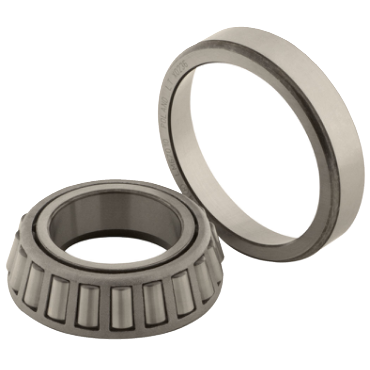

- The most basic and widely used type of tapered roller bearing. It is comprised of two main separable parts, the inner race assembly cone and the outer race cup. During equipment assembly, single-row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
| Cone No. | LM67048 |
| Enclosure | Open |
| Tolerance | Class 2 (Standard) |
| Inch/Metric | Inch |
| Cup No. | LM67010 |
| Cage Material | Steel |
| I.D. | 1 1/4 in |
| Outer Ring Width | 0.625 in |
| Cone Width | 0.66 in |
| Cup Width | 0.465 in |
| Cone/Cup | Cup/Cone |
| O.D. | 2.3280 in |
| Weight | 0.43 LB |
| EAN or UPC | 53893730394 |
