T34CA2JCR

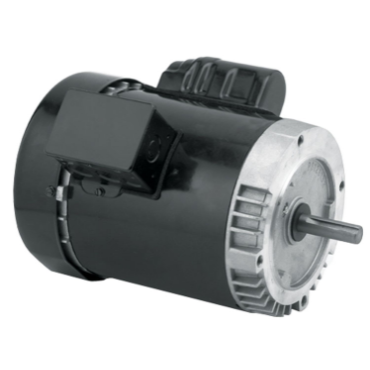

General Purpose Single Phase TEFC C-Face Motor

Item #101432848

60 Hz

115/208-230 Voltage Rating

C-Face Mount

TEFC Enclosure

56C Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

Leeson 110308.00

AC Motor

Item #104589548

each

Compare

Product Details

Specifications

Poles	4
Full Load Amps	11.4/5.7-5.7
Motor Application	General Purpose
Duty	Continuous Duty
Full Load rpm	1725 rpm
Voltage Rating	115/208-230, 230, 115, 208
Frame	56C
C Dimension	11.8 in
RPM	1800 rpm
Service Factor	1.15
Full Load Efficiency	69 %
Phase	Single Phase
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Hz	60 Hz
Insulation	B
Thermal Protection	Automatic Reset
HP	3/4
Enclosure	TEFC
Mounting	C-Face - Less Base, C-Face
Weight	27.0 LB
EAN or UPC	786382070830
