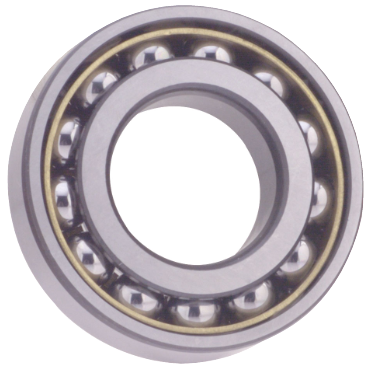

7200-PJD Light Series Duplex Ball Bearing

7205PJDU

7200-PJD Light Series Duplex Ball Bearing
Item #102142802
  • Single Row Angular Contact Bearing, 25 mm ID x 52 mm OD x 15 mm Wide, Open, Standard Precision (ABEC 1), Brass / Bronze Cage, Normal Clearance (C0), 40° Contact Angle
7200-PJD Light Series Duplex Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Single Row Angular Contact Bearing, 25 mm ID x 52 mm OD x 15 mm Wide, Open, Standard Precision (ABEC 1), Brass / Bronze Cage, Normal Clearance (C0), 40° Contact Angle

features

  • MRC angular contact bearings with a PJ suffix have one heavy race shoulder on the outer ring, opposing one heavy race shoulder and on recessed race shoulder on the inner ring. Because of this construction, it is possible for this bearing to incorporate a
  • 7000-PJ bearings are particularly suitable for positions where the thrust is always present in one direction. It should not be used where the bearing is subjected to radial load only, or combined radial and thrust load where the radial load is predominant
  • 7000-PJ bearings are available with either peressed brass or machined brass, ball centered cages. The low shoulder diameters on the nonthrust sides of inner and outer rings, combined with large clearances between the land diameters and the cage, allow fo
  • ABEC Grade 3 bore tolerances reduce the range of interference fits between the shaft and bearing bore. These tighter tolerances result in closer control of preload and minimize the risk of thermal runaway.
  • 7200-PJ and PJD Series bearings are used for heavy one-directional thrust loads or combined radial and thrust loads where thrust is predominant.
Contact Angle 40 Degree
Snap Ring No Snap Ring
Radial Internal Clearance Normal
Seal Material None
Radial Internal Clearance Specification Normal Clearance
Width 0.59 in, 15 mm
Preload Level Light
Series 7200PJ
Cage Material Brass
O.D. Type Cylindrical
icNumber 7695884
Lubricant Oil Preservative
Internal Design Universal Mounting
I.D. 0.98 in, 25 mm
Capacity Standard Capacity
Fillet Radius 0.024 in
Origin Single Row Angular Contact
Inner Ring Width 0.59 in, 15 mm
Rows of Balls Single
Bearing Type Unmounted, Angular Contact
Outer Ring Width 0.59 in, 15 mm
Precision Standard
Bore Type Cylindrical
Cage Type Metal
Static Load Rating [Max] 4590 lbf
Temperature Range [Max] 450 °F
Ball Material Steel
Seal Type Unsealed
O.D. 2.05 in, 52 mm
Material Bearing Steel
Precision Level Standard (ABEC 1)
Static Load Rating 10.2 kN
Locking Device No Locking Device
Enclosure Open
Flush Ground Yes
Dynamic Load Rating 15.6 kN
No. in Set Single Bearing
Inch/Metric Metric
Weight 0.313 LB
EAN or UPC 97741016353
