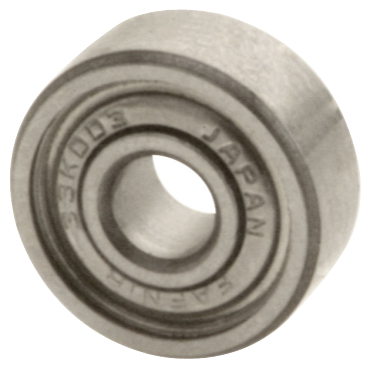

- Single Row Radial Bearing, 0.125" ID x 0.375" OD x 0.156" Wide, Double Shielded (Non-Contact), Standard Precision (ABEC 1), Steel Cage, Greater Than Normal Clearance (C3)
description
- Extra small ball bearings can sustain radial thrust and combined loads proportionate to the capacities of the small shafts for which they are designed. They are especially suitable for use in fractional horsepower motors, domestic appliances, precision instruments, tape recorders and similar devices. These bearings are electric motor quality for applications where extra quietness is a requirement.
applications
- General industrial
- Automotive
- Agricultural
- Chemical
- Utilities
| Static Load Rating [Max] | 48.00 lbf |
| Cage Type | Metal |
| Contact Angle | 0° |
| O.D. | 3/8 in |
| Bearing Type | Radial |
| Temperature Range [Max] | 275 °F |
| Rows of Balls | Single |
| Bore Type | Round Bore |
| Locking Device | No Locking Device |
| Outer Ring Width | 5/32 in |
| Enclosure | Double Shielded |
| Ball Material | Steel |
| Closed Width | 5/32 in |
| Inch/Metric | Inch Bore |
| Lubricant | Polyurea Base |
| Seal Type | Non-Contact Seals |
| icNumber | 7696488 |
| Width | 5/32 in |
| Fillet Radius | 0.012 in |
| Open Width | 5/32 in |
| Radial Internal Clearance Specification | Greater Than Normal Clearance |
| O.D. Type | Straight |
| Temperature Range [Min] | -30 °F |
| No. in Set | Single Bearing |
| Inner Ring Width | 5/32 in |
| Cage Material | Steel |
| Precision Level | Standard (ABEC 1) |
| Snap Ring | No Snap Ring |
| Seal Material | Metal |
| I.D. | 1/8 in |
| Origin | Single Row Radial |
| Dynamic Load Rating | 160.00 lbf |
| Preload Level | None |
| Precision | Standard |
| Capacity | Standard Capacity |
| Material | Steel |
| Radial Internal Clearance | C3 |
| Weight | 0.01 LB |
| EAN or UPC | 87796044418 |
| NSN Number | 3110-00-155-9589, 3110-00-277-0019 |
