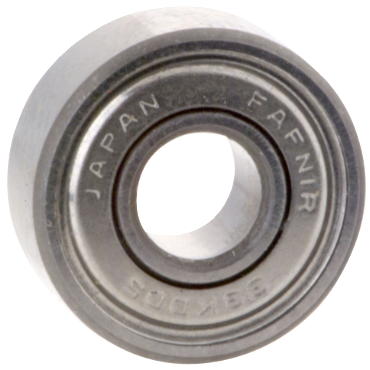

- Single Row Radial Bearing, 0.1875" ID x 0.5" OD x 0.196" Wide, Double Shielded (Non-Contact), Standard Precision (ABEC 1), Steel Cage, Greater Than Normal Clearance (C3)
description
- Extra small ball bearings can sustain radial thrust and combined loads proportionate to the capacities of the small shafts for which they are designed. They are especially suitable for use in fractional horsepower motors, domestic appliances, precision instruments, tape recorders and similar devices. These bearings are electric motor quality for applications where extra quietness is a requirement.
applications
- General industrial
- Automotive
- Agricultural
- Chemical
- Utilities
| Capacity | Standard Capacity |
| Ball Material | Steel |
| Contact Angle | 0° |
| Bore Type | Round Bore |
| Origin | Single Row Radial |
| Enclosure | Double Shielded |
| Inner Ring Width | 0.196 in |
| Precision Level | Standard (ABEC 1) |
| Outer Ring Width | 0.196 in |
| Rows of Balls | Single |
| Bearing Type | Radial |
| Fillet Radius | 0.012 in |
| Seal Type | Non-Contact Seals |
| I.D. | 3/16 in |
| No. in Set | Single Bearing |
| Locking Device | No Locking Device |
| Cage Material | Steel |
| Radial Internal Clearance Specification | Greater Than Normal Clearance |
| Snap Ring | No Snap Ring |
| Temperature Range [Max] | 275 °F |
| Open Width | 5/32 in |
| Preload Level | None |
| Lubricant | Polyurea Base |
| icNumber | 7696102 |
| Inch/Metric | Inch Bore |
| Dynamic Load Rating | 325.00 lbf |
| Static Load Rating [Max] | 110.00 lbf |
| Precision | Standard |
| Seal Material | Metal |
| Material | Steel |
| Cage Type | Metal |
| Closed Width | 0.196 in |
| O.D. Type | Straight |
| Temperature Range [Min] | -30 °F |
| Radial Internal Clearance | C3 |
| O.D. | 1/2 in |
| Width | 0.196 in |
| Weight | 0.022 LB |
| EAN or UPC | 87796044463 |
| NSN Number | 3110-00-208-0055, 3110-00-227-3038, 3110-00-728-0963 |
