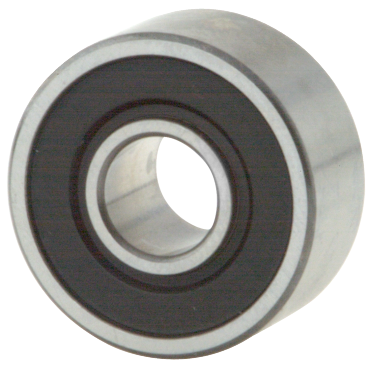

- Single Row Radial Bearing, 0.1875" ID x 0.5" OD x 0.196" Wide, Double Sealed (Contact), Standard Precision (ABEC 1), Steel Cage, Greater Than Normal Clearance (C3)
description
- Extra small ball bearings can sustain radial thrust and combined loads proportionate to the capacities of the small shafts for which they are designed. They are especially suitable for use in fractional horsepower motors, domestic appliances, precision instruments, tape recorders and similar devices. These bearings are electric motor quality for applications where extra quietness is a requirement.
applications
- General industrial
- Automotive
- Agricultural
- Chemical
- Utilities
| Inch/Metric | Inch Bore |
| Preload Level | None |
| Origin | Single Row Radial |
| Outer Ring Width | 0.196 in |
| Capacity | Standard Capacity |
| Material | Steel |
| I.D. | 3/16 in |
| No. in Set | Single Bearing |
| Static Load Rating [Max] | 110.00 lbf |
| O.D. Type | Straight |
| Rows of Balls | Single |
| Contact Angle | 0° |
| Snap Ring | No Snap Ring |
| Seal Material | Buna-N |
| Temperature Range [Max] | 275 °F |
| Temperature Range [Min] | -30 °F |
| Radial Internal Clearance Specification | Greater Than Normal Clearance |
| Radial Internal Clearance | C3 |
| Fillet Radius | 0.012 in |
| Bore Type | Round Bore |
| Open Width | 5/32 in |
| Enclosure | Double Sealed |
| Dynamic Load Rating | 325.00 lbf |
| Ball Material | Steel |
| Cage Material | Steel |
| Precision | Standard |
| Inner Ring Width | 0.196 in |
| icNumber | 7696113 |
| Cage Type | Metal |
| Closed Width | 0.196 in |
| Width | 0.196 in |
| Precision Level | Standard (ABEC 1) |
| Lubricant | Polyurea Base |
| Bearing Type | Radial |
| Locking Device | No Locking Device |
| O.D. | 1/2 in |
| Seal Type | Contact Seals |
| Weight | 0.022 LB |
| EAN or UPC | 87796044470 |
| NSN Number | 3110-00-580-4046 |
